Master Key System Design

A hierarchical key system operates on a pinning principle inside each lock cylinder. Every lock in the system is pinned so that a specific change key — issued to an individual employee — opens only that person's designated door or set of doors. At the same time, a master key (or a series of grand master and sub-master keys) is cut to operating depths that allow it to clear the additional pin stack and open multiple locks across the entire hierarchy. The more levels you need — individual, departmental, building-wide, and grand master — the more precisely each cylinder must be planned and pinned from the start. Errors at the planning stage cascade into real security gaps, which is why the design blueprint matters as much as the physical cutting.

Before a single key is cut, our commercial locksmith team maps your entire property: how many doors, which employees or roles need cross-zone access, whether any areas require restricted-keyway cylinders that cannot be duplicated at a hardware store, and how your current hardware — mortise lock bodies, cylindrical locks, padlocks, cabinet locks — fits into the new structure. That mapping session is where the system lives or fails, and it is the most important conversation we will have with you before any physical work begins.

The mortise lock is the workhorse of commercial master key systems. Because the cylinder is removable and the lock body itself is recessed into the door edge rather than surface-mounted, mortise assemblies accept a wide range of interchangeable cores and can be rekeyed or upgraded without replacing the entire unit. For Parrish businesses that expect staff turnover, tenant changes, or phased growth — all common in a fast-developing corridor like the area around Lakewood Ranch Boulevard — that modularity is a significant long-term advantage. We install and service mortise lock hardware from manufacturers such as Schlage and other quality brands, selecting the grade that matches your traffic volume and security rating requirements.

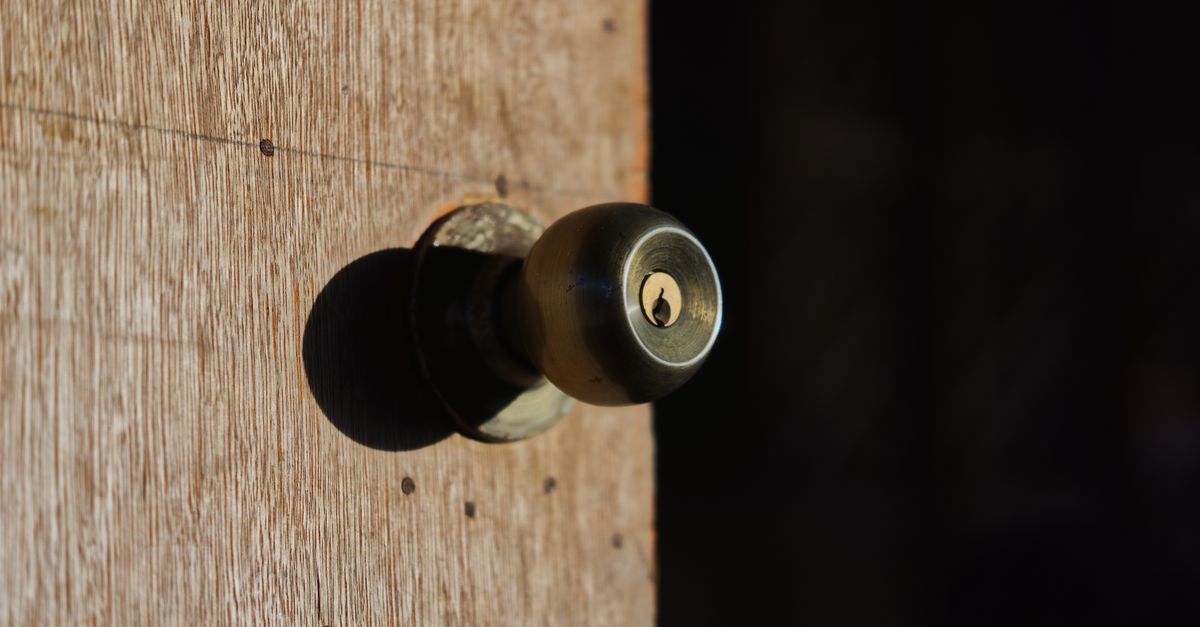

Not every door in a commercial building needs a mortise lock. Interior offices, storage closets, and restrooms often use a door knob lock or a lever-set cylindrical lock. A well-planned master key system accommodates mixed hardware, ensuring that the pinning across all cylinder types still resolves correctly at every level of the hierarchy. Our technicians are experienced working across this hardware mix, and we carry common cylinder blanks and pinning kits in our mobile service vehicles so that most installations and rekeyings can be completed on-site in a single visit, damage-free where the existing door prep allows.

Parrish is one of the fastest-growing communities in Manatee County, and many of the businesses we serve are either expanding into additional suites or managing shared-access buildings where multiple tenants need defined zones. A grand master key system handles this elegantly: the property owner or facilities manager holds a grand master key that opens everything, each tenant's manager holds a sub-master that opens all doors within their suite, and individual employees hold change keys for only their assigned spaces. Designing for future expansion from day one — leaving room in the key code series to add doors, wings, or floors without rebuilding the system — is something our team prioritizes during the initial planning phase.

If your business has reached the point where a single security breach — a lost key, a terminated employee — requires rekeying dozens of cylinders, that is a clear sign your current system needs a structured redesign. Call (941) 352-8812 and speak with one of our commercial locksmith specialists. We answer 24/7 and can schedule a site assessment at a time that does not disrupt your operations.

Even the most carefully designed system encounters unexpected situations: a manager loses a sub-master key late on a Friday evening, a cylinder is damaged during a break-in attempt, or a tenant vacates and you need a section of the building rekeyed immediately without disturbing the rest of the hierarchy. Our emergency locksmith services are available around the clock — 24/7, every day of the year — and because we operate mobile units throughout the Parrish area, we can typically reach properties near Ellenton, Parrish proper, and the surrounding Manatee County corridors without significant delay. We verify ownership or authorization before any work begins, ensuring that access is restored only to the right parties.

Ongoing maintenance is part of responsible system stewardship. Cylinders wear over time, especially in high-traffic commercial entry points exposed to Florida's humidity and dust. We offer periodic cylinder inspection, lubrication, and re-pinning services, and we maintain records (with client permission) of your key code series so that adding new keys or replacing a lost one in the future does not require a full system audit. Keeping that documentation current is particularly important for businesses that issue keys across multiple departments or job classifications.
